Ambulance Cardiac Monitor
  • Ambulance Cardiac Monitor
  • Ambulance Cardiac Monitor
  • Ambulance Cardiac Monitor

Ambulance Cardiac Monitor

The medical patient monitor is a device or system that measures and controls a patient's physiological parameters and can compare it with known set values. If there is an excess, an alarm can be issued. The patient monitor must continuously monitor the patient's physiological parameters for 24 hours

Product Details

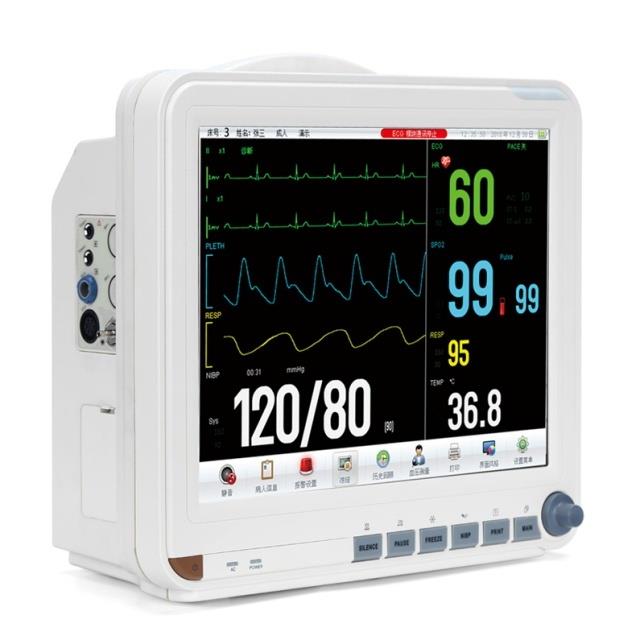

AM-2000D

What’s the patient monitor

The medical patient monitor is a device or system that measures and controls a patient’s physiological parameters and can compare it with known set values. If there is an excess, an alarm can be issued. The patient monitor must continuously monitor the patient’s physiological parameters for 24 hours, detect changes in trends, point out critical situations, and provide the basis for emergency treatment and treatment by doctors to minimize complications and achieve the purpose of relieving and eliminating the disease. In addition to measuring and monitoring physiological parameters, the use of the monitor also includes monitoring and processing of medication and conditions before and after surgery.

1

Feature

1. 15” color TFT display.
2. Standard configuration: ECG, NIBP, SPO2, Temp, Resp, PR;

3. Suitable for Adult, Pediatric, Neonate;

4. Multi-display interface: Standard, Large font, Trend Coexist, OxyCRG dynamic

5. Full ECG waveforms;

6. Language: Built-in 8 language for choose (English, Chinese, Turkish, Spanish, French, Russian, German, Italian);

7. Review: Maximum 720h tabular and graphic trends of all parameters, 1000NIBP

8. Records and 200 alarm event;

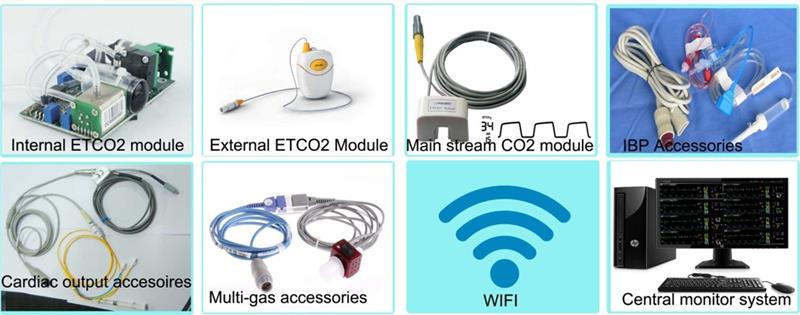

Optional functions Central monitor system
USB memory,VGA,network,WIFI.
3/12-lead ECG, Sun Tech NIBP
Touch Screen,printer
4-TEMP,2-SpO2, Nellcor SpO2
Dual IBP,ETCO2(sidestream,main stream)
Wall mount,Trolley
Anesthetic-multi-gas
CO (Cardiac output)

2

Special specifications
1. Advance patient Manage: gender, full name, ID no, room no, bed no, weight, height, blood type, paced or not, remakes;
2. Multi-parameter board: Separated parameter board, main board, ECG board, SPO2 board, and NIBP board are independent;

3. Interface: Color, layout of each parameters can be set up by user need, bed to bed view display (optional);

4. Fanless: Use special fanless cooling technology in the device to provide users quiet environment;

5. Standby: Unique standby mode for energy saving and suspend monitoring;

6. Time delay: Time delay switch-off function to save data when monitor turn off suddenly;

7. Easy software update: Users can update monitor software by themselves;

8. Analysis: Real time S-T segment analysis, and 20 type arrhythmic analysis; SpO2 Pitch Tone Variation, Drug Dose Calculation and Hemodynamic Calculations;

9. Storage: external SD card slot enables memory extension(optional);

10. Data transfer: USB port to allow to transfer patient data to a PC (optional);

11. Resistance to interference : Efficient resistance to interference of defibrillator and HF knife;

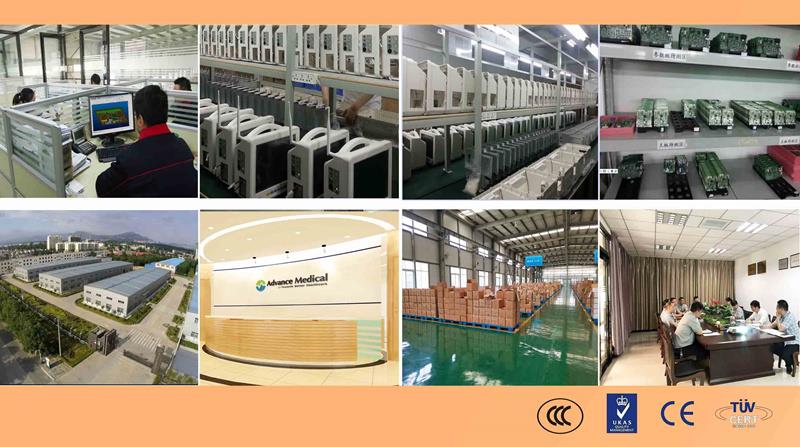

Who we are

We are a OEM manufacturer of various patient monitors for ICU,ambulance,Bedside and operation room.also the vital sign monitor for Outpatient and clinic,home care.the size is from 2.8inch to 15inch.We can provide all monitor solutions for you base on steady quality and reasonable price.

3

4

FAQ

5
